| Selected Ad |
| Category: |
Enduro Karts |
| Title: |

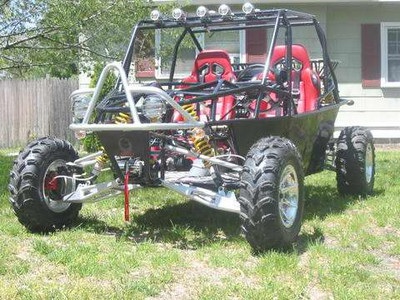

UV-03A, 4 Seaters |
| Ad
Number: |
1020 |
| Date Posted: |
6/13/2006 |
| Contact: |
Bill Ma
9853 Max Shapiro Way
South El Monte, CA 91733
|
| Telephone: |
626-271-2718
|
| Website: |
http://www.scooterleader.com
|
|
|
|
|
|
Description
$7247.00
free shipping, no sale in California
SPECIFICATIONS
UV-03A
CONFIGURE
Colors available
Red/Blue/Army green camo/Maple leaf camouflage
Decals(Y/N)
Yes
Tool kit(Y/N)
Yes
Remote start(Y/N)
No
Remote engine stop(Y/N)
No
Remote alarm(Y/N)
No
Speed limiter(Y/N)
yes
Assembly required
tire,canopy,dumper box,canopy Support,bumper
ENGINE INFO
Engine type
CF188,Four-stroke cycle,single-cylinder,shaft drive transission,water cooled
Engine brand
CFMOTO
Displacement
493 cc
Cooling
Water cooled
Max horsepower
32HP,24 KW
Max torque
38.8N�m/5500r/min
Bore*stroke
87.5 x 82mm(3.44x3.23in)
Max speed
50m/h,80km/h
Climbing ability
>30�
Ignition
C.D.I
Starting system
non-touch CDI DC start
Battery
12V/ 36AH
Carburetor brand
MIKUNI
Engine oil
SAE 15W�40/SF
Gear oil
CHASSIS ETC.
Clutch
Automatic
Transmission
H/L/N/R
Driveline
shaft
Driving wheel
4 wheel drive
Suspension,front/rear
Front single, rear double
Brakes,front/rear
Front disc, rear disc
Brake operation
foot brake
Tires,front/rear
Front 25�8.00-12 Rear 25�10.00-12
Fuel capacity/type
22L
Weight,G.W./N.W.
630 KG/680KG
Max load
300 KG
DIMENSIONS
Wheelbase
1730 MM
OA L*W*H
2600�1280�1960 MM
Height to seat
890 MM
Min ground clearance
210 MM
Carton size
2.32 X 1.31 X 1.27 MM
Shipping info
40HQ 18units
|
|
|
|
|
|
|
